Mini Solid Carbide Boring bar(L053.3.20)TiALN Coated

$79.45
Solid carbide mini boring bar suitable for stainless steel, steels, and super alloys
Grade and Coating
TiALN

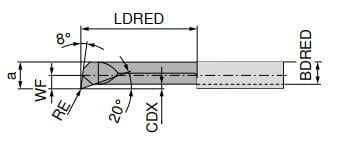

Mounting spigot diameter​ / DCONMS - d 1 Dia
4.00
Overall length / OAL - l 1 OAL
34.00
Corner radius / RE / R
0.03
Reduced body diameter length / LDRED
20
Minimum bore diameter / DMIN
2.8
Body diameter, reduced / BDRED
2.3
Cutting depth maximum / CDX
0.2
CW
0
Insert hand / IH
Left
PDPT
0
