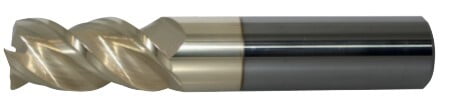

Solid Carbide Ultra High Performance Zirconium Coated 3 Flute HPC End Mill With Radius(06250.12500.R03.R01250.)

Write a review
$161.30
Solid carbide end mill suitable for milling aluminum
Grade and Coating
Aluminum

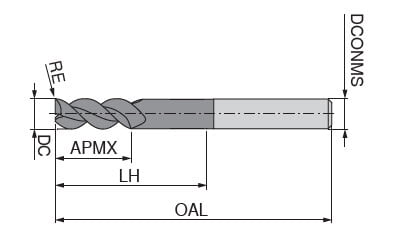

Mounting spigot diameter​ / DCONMS - d 1 Dia
0.625
Overall length / OAL - l 1 OAL
3.50
Cutting diameter / DC
0.625
Depth of cut maximum / APMX - l 2 LOC
1.25
Peripheral effective cutting edge count / ZEFP - Flutes
3.00
Corner radius / RE / R
0.125
Quantity
Add to Cart
Product Details
Specifications
Solid Carbide End Mill
  • Cutting diameter / DC
    0.625
  • Mounting spigot diameter / DCONMS - d 1 Dia
    0.625
  • Grade and Coating
    Aluminum
  • Peripheral effective cutting edge count / ZEFP - Flutes
    3
  • Depth of cut maximum / APMX - l 2 LOC
    1.25
  • Corner radius / RE / R
    0.125
