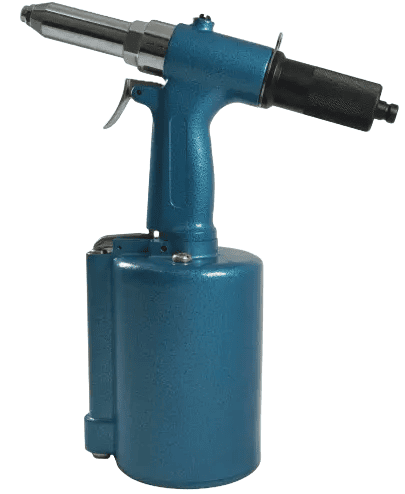

Air Hydraulic Riveter for Aircraft

Heavy-Duty Air Hydraulic Riveter for Aerospace Applications
1,860 kg.f Traction Power | Professional Aircraft Riveting Tool

Technical Specifications

⚙ Traction Force: 1,860 kg.f (18,240 N)
📏 Stroke Length: 23 mm
🔩 Rivet Capacity:

• Steel-Steel: Up to 8.0 mm

• Stainless-Stainless: Up to 6.4 mm
  🛠️ Rivet Nut Compatibility: 4.8 | 6.0 | 6.4 | 8.0 mm
  ✈ Weight & Size: 3.0 kg | 230 mm (compact for tight spaces)
  💨 Air System:

• Consumption: 2.28 ltr/cycle

• Pressure: 90 PSI (6.3 kg/cm²)

• Inlet: 1/4" | Hose: 6.5 mm ID

Key Features

✅ High-Power Hydraulic Action – Handles large aircraft rivets with ease
✅ Precision Control – Consistent 23mm stroke for uniform rivet setting
✅ Durable Construction – Aerospace-grade materials for heavy use
✅ Lightweight Design – Only 3.0 kg reduces operator fatigue

Aerospace Applications

✔ Aircraft skin riveting
✔ Structural frame assembly
✔ Special large rivet installation
✔ Maintenance and repair work

Package Information

• Tool Only (Nose assemblies sold separately)

• Packing: 6 units/carton | 16 kg | 2.3 cu.ft

Engineered for Precision Aircraft Assembly

[Request Quote] | [Technical Specs] | [Bulk Order]

Compact Version

Aircraft Hydraulic Riveter - 1,860 kg.f force | Handles up to 8mm steel rivets | 3kg lightweight design

(Optimized for aerospace technicians - highlights large rivet capacity and aircraft-specific use cases)
