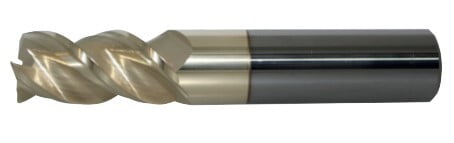

0.75 Inch solid Carbide High Performance 3 flute end mill

Solid Carbide Ultra High Performance Zirconium Coated 3 Flute HPC End Mill(07500.10000.R03.Z00000.)

Write a review
$167.50
Ultra High performance solid carbide end mill suitable for milling aluminum
Grade and Coating
ZrN

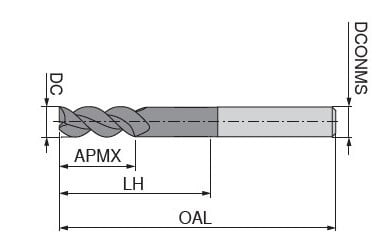

Mounting spigot diameter​ / DCONMS - d 1 Dia
0.75
Overall length / OAL - l 1 OAL
3.00
Cutting diameter / DC
0.75
Depth of cut maximum / APMX - l 2 LOC
1.00
Peripheral effective cutting edge count / ZEFP - Flutes
3.00
Quantity
Add to Cart
Product Details
Specifications
Solid Carbide End Mill
  • Cutting diameter / DC
    0.75
  • Mounting spigot diameter / DCONMS - d 1 Dia
    0.75
  • Grade and Coating
    ZrN
  • Peripheral effective cutting edge count / ZEFP - Flutes
    3
  • Protruding length / LPR
    1
