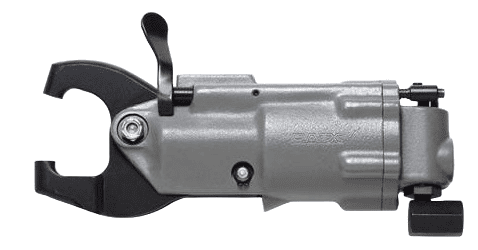

Compression Riveter

Compression Riveter
Professional-Grade Pneumatic Riveting Tool for Aerospace Applications

Technical Specifications

▸ Rivet Capacity:

• Aluminum: 3.17mm (1/8")

• Steel: 2.36mm (3/32")
  ▸ Working Dimensions:

• Reach: 38.1mm (1-1/2")

• Gap: 22.6mm (0.89")

• Closed Height: 22.2mm (7/8")
  ▸ Power:

• Max Force: 3,000 lb (13.35 kN) @ 6.2 bar
  ▸ Tool Dimensions:

• Length: 230mm

• Weight: 1.7kg (with yokes)
  ▸ Set Holder:

• Max Travel: 15.9mm (5/8")

• Power Stroke: 1.3mm (0.05")
  ▸ Includes: G-130-A15 Alligator Yoke
  ▸ Packaging: 6 units/carton (14.5kg | 1.77 cu ft)

Key Features

✔ Heavy-Duty Performance - 3,000 lb setting force for structural rivets
✔ Precision Control - 1.3mm power stroke for flush finishes
✔ Versatile Yoke System - Accesses confined spaces (38.1mm reach)
✔ Aircraft-Grade Construction - Durable aluminum body

Aerospace Applications

• Wing skin riveting
• Fuselage structural joints
• Control surface attachments
• Landing gear components

Order Information

• Ready for immediate shipment

• Volume discounts available

[Request Quote] | [View Yoke Options] | [Download Manual]

Quick-Reference Version

3,000lb force, 3.17mm capacity. Includes Alligator yoke. For structural airframe work.

(The professional choice for A&P mechanics and aerospace assembly teams.)
