Mini Solid Carbide Boring bar(RX050.5.15R20)Ultra High Performance Coating

$66.73
Solid carbide mini boring bar suitable for stainless steel, steels, and super alloys
Grade and Coating
Special Coating

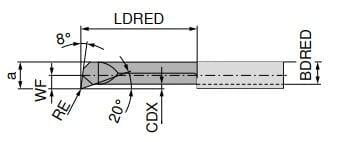

Mounting spigot diameter​ / DCONMS - d 1 Dia
5.00
Overall length / OAL - l 1 OAL
30.00
Corner radius / RE / R
0.20
Reduced body diameter length / LDRED
15
Minimum bore diameter / DMIN
5.0
Body diameter, reduced / BDRED
4.05
Cutting depth maximum / CDX
0.30
CW
0
Insert hand / IH
Right
PDPT
0
