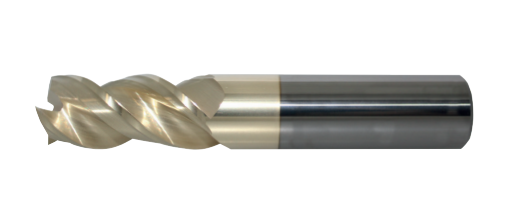

Solid Carbide Ultra High Performance Zirconium Coated 3 Flute HPC End Mill(05000.12500.R03.Z00000)

Write a review
$113.46
High performance solid carbide end mill suitable for milling aluminum
Grade and Coating
ZrN

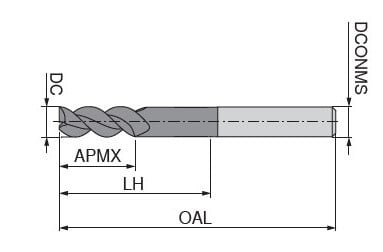

Mounting spigot diameter​ / DCONMS - d 1 Dia
0.50
Overall length / OAL - l 1 OAL
3.00
Cutting diameter / DC
0.50
Depth of cut maximum / APMX - l 2 LOC
1.25
Peripheral effective cutting edge count / ZEFP - Flutes
3.00
Quantity
Add to Cart
Product Details
Specifications
Solid Carbide End Mill
  • Cutting diameter / DC
    0.5
  • Mounting spigot diameter / DCONMS - d 1 Dia
    0.5
  • Grade and Coating
    ZrN
  • Peripheral effective cutting edge count / ZEFP - Flutes
    3
  • Depth of cut maximum / APMX - l 2 LOC
    1.25
  • Protruding length / LPR
    1.4252
