Mini Solid Carbide Boring bar(R050.15.12)TiALN Coated

$78.36
Solid carbide mini boring bar suitable for stainless steel, steels, and super alloys
Grade and Coating
TiALN

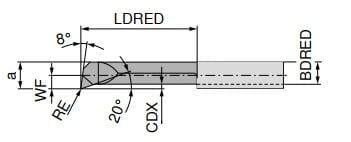

Mounting spigot diameter​ / DCONMS - d 1 Dia
4.00
Overall length / OAL - l 1 OAL
26.00
Corner radius / RE / R
0.05
Reduced body diameter length / LDRED
12
Minimum bore diameter / DMIN
1.5
Body diameter, reduced / BDRED
1.15
Cutting depth maximum / CDX
0.10
CW
0
Insert hand / IH
Right
PDPT
0
Quantity
