3DX102-06250.12500.R03.R00600.SF.X106

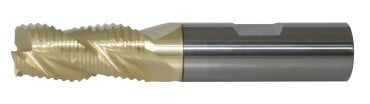

Solid Carbide Ultra High Performance Zirconium Coated 3 Flute Rougher End Mill (06250.12500.R03.R00600.)

Write a review
$209.50
High performance solid carbide end mill suitable for rough milling of aluminum
Grade and Coating
ZrN
Mounting spigot diameter​ / DCONMS - d 1 Dia
0.625
Overall length / OAL - l 1 OAL
3.50
Cutting diameter / DC
0.625
Depth of cut maximum / APMX - l 2 LOC
1.25
Peripheral effective cutting edge count / ZEFP - Flutes
3.00
Corner radius / RE / R
0.06
Quantity
Add to Cart
Product Details
Specifications
Solid Carbide End Mill
  • Cutting diameter / DC
    0.625
  • Mounting spigot diameter / DCONMS - d 1 Dia
    0.625
  • Grade and Coating
    ZrN
  • Peripheral effective cutting edge count / ZEFP - Flutes
    3
  • Depth of cut maximum / APMX - l 2 LOC
    1.25
