Mini Solid Carbide Boring bar(R050.6.42)TiALN Coated

$100.12
Solid carbide mini boring bar suitable for stainless steel, steels, and super alloys
Grade and Coating
TiALN

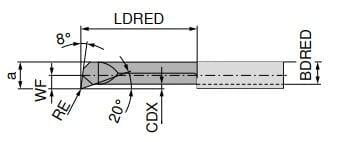

Mounting spigot diameter​ / DCONMS - d 1 Dia
6.00
Overall length / OAL - l 1 OAL
57.00
Corner radius / RE / R
0.15
Reduced body diameter length / LDRED
42
Minimum bore diameter / DMIN
6.0
Body diameter, reduced / BDRED
4.50
Cutting depth maximum / CDX
0.50
CW
0
Insert hand / IH
Right
PDPT
0
Quantity
