Mini Solid Carbide Boring bar(R050.5.15)

$55.70
Solid carbide mini boring bar suitable for aluminum

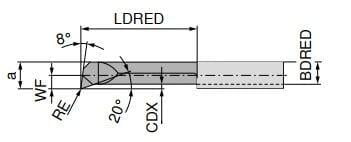

Mounting spigot diameter​ / DCONMS - d 1 Dia
5.00
Overall length / OAL - l 1 OAL
35.00
Corner radius / RE / R
0.15
Reduced body diameter length / LDRED
20
Minimum bore diameter / DMIN
5.0
Body diameter, reduced / BDRED
3.8
Cutting depth maximum / CDX
0.5
CW
0
Insert hand / IH
Right
PDPT
0
Quantity
