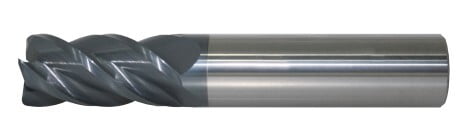

Ultra High Performance Solid Carbide HPC End Mill(17.5.36°.Z4.)

Ultra High Performance Solid Carbide HPC End Mill(17.5.36°.Z4.)

Write a review
$315.77
Solid carbide end mill suitable for milling stainless steel. steels. and super alloys
Grade and Coating
High Performance Coating

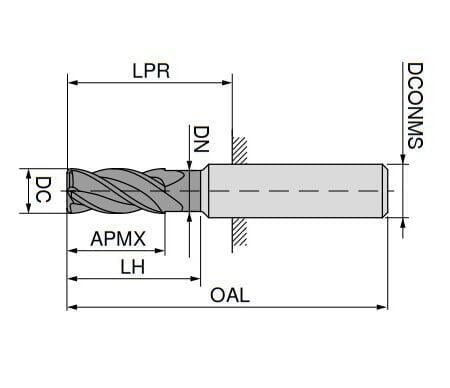

Mounting spigot diameter​ / DCONMS - d 1 Dia
18.00
Cutting diameter / DC
17.50
Depth of cut maximum / APMX - l 2 LOC
36.00
Peripheral effective cutting edge count / ZEFP - Flutes
4.00
Corner radius / RE / R
0.32
Protruding length / LPR
69.00
Head length / LH
67.00
DN
17
Quantity
Add to Cart
Product Details
Specifications
Solid Carbide End Mill
  • Grade and Coating
    High Performance Coating
  • Peripheral effective cutting edge count / ZEFP - Flutes
    4
