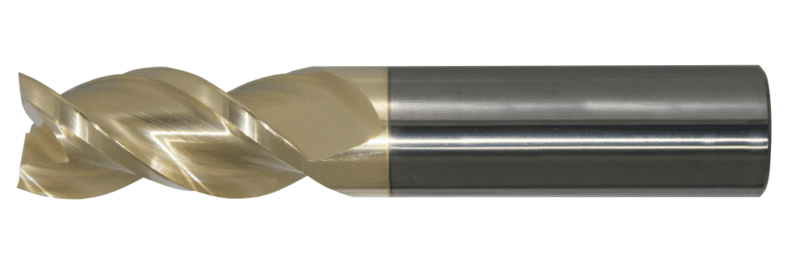

AL.0625.40°.3.HA.2500.5000 ZRN-U SOLID CARBIDE END MILLING CUTTER

Solid Carbide High Performance Zirconium Coated 3 Flute HPC End Mill (06250.25000.R03.S00000.)

Write a review
$184.13
Solid carbide end mill suitable for milling aluminum
Grade and Coating
ZrN

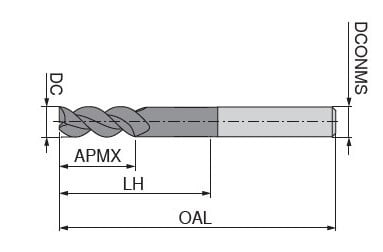

Mounting spigot diameter​ / DCONMS - d 1 Dia
0.625
Overall length / OAL - l 1 OAL
5.00
Cutting diameter / DC
0.625
Depth of cut maximum / APMX - l 2 LOC
2.50
Peripheral effective cutting edge count / ZEFP - Flutes
3.00
Corner radius / RE / R
0.00
Quantity
Add to Cart
Product Details
Specifications
Solid Carbide End Mill
  • Cutting diameter / DC
    0.625
  • Mounting spigot diameter / DCONMS - d 1 Dia
    0.625
  • Grade and Coating
    ZrN
  • Peripheral effective cutting edge count / ZEFP - Flutes
    3
