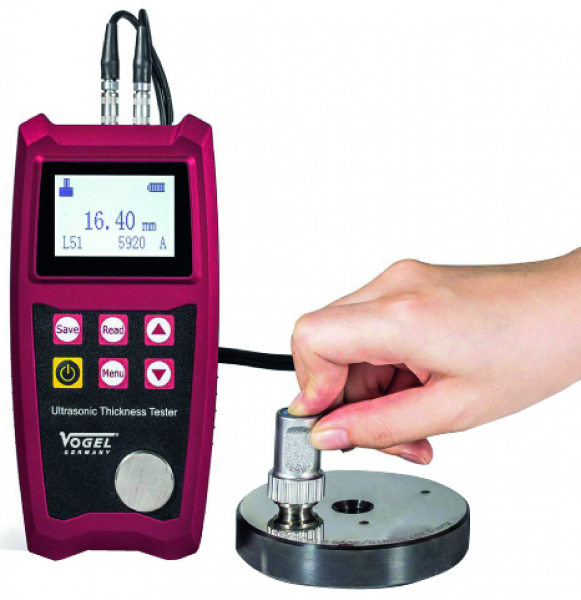

Ultrasonic Thickness Gauge – Professional Handheld Measuring Device

Ultrasonic Thickness Gauge – Professional Handheld Measuring Device

Key Features

✔ Multi-Material Measurement – Compatible with metals (steel, aluminum, copper), ceramics, plastics, and composites
✔ Dual Probes Included –

• N05/90° Probe (10mm/5MHz): Measures 1–250mm (steel)

• N07 Probe (6mm/7MHz): For thin materials (0.75–50mm)
  ✔ Large 4-Digit LCD – Clear readings in any position (horizontal, vertical, upside down)
  ✔ Rugged ABS Housing – Shock-resistant with soft keypad for easy operation
  ✔ Smart Functions –

• Memory Storage: 2,000 measurement groups

• Calibration: Integrated steel test plate

• Preset Limits: Customizable upper/lower thresholds

• Unit Switchable: mm/inch

Technical Specifications

• Operating Temp: -10°C to 60°C

• Humidity Range: 20–90% RH

• Power Supply: 2x AA batteries (included)

• Data Output: PC software for analysis

Applications

• Aerospace: Aircraft skin thickness checks

• Automotive: Engine block & pipe inspections

• Marine: Hull corrosion monitoring

• Industrial: Storage tanks, pipelines, bridges

Package Includes

• Ultrasonic gauge

• N05 & N07 probes

• Couplant gel

• 2x AA batteries

• Operation manual

Precision Thickness Measurement – Anytime, Anywhere
