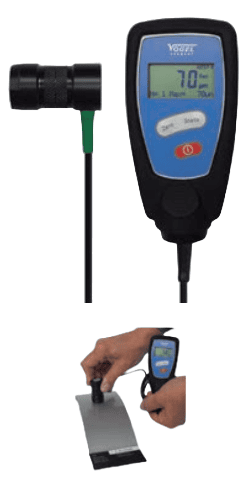

Universal Coating Thickness Gauge (IP52 Rated)

Universal Coating Thickness Gauge (IP52 Rated)
Professional Measurement Tool for Non-Destructive Testing

Key Features

✔ Dual Measurement Modes –

• Magnetic Induction (Fe): For non-magnetic coatings on steel

• Eddy Current (NFe): For insulating layers on non-ferrous metals
  ✔ Auto-Base Detection – Instantly identifies substrate material
  ✔ No Calibration Needed – Factory-calibrated with test foils (1 steel & 1 aluminum plate included)
  ✔ Wear-Resistant Probe – Tungsten carbide tip for long-term accuracy
  ✔ Ergonomic Design – Rubber grip, V-groove probe base for curved surfaces

Technical Specifications

• Display: 4-digit alphanumeric LCD (10mm height)

• Measurement Range:

  • Fe (Steel): 0–2000 µm

  • NFe (Non-Ferrous): 0–2000 µm

• Resolution: 1 µm | 0.1 mil

• Min. Substrate Thickness:

  • Fe: 0.5mm

  • NFe: 50µm

• Operating Temp: 0°C to 60°C

• Power: 2x AAA batteries (included)

Professional Applications

• Automotive: Paint thickness on car bodies

• Aerospace: Coating checks on aircraft components

• Shipbuilding: Anti-corrosion layer verification

• Quality Control: Powder coating & electroplating

Package Includes

• Coating thickness gauge

• Test foils (steel & aluminum)

• 2x AAA batteries

• Wrist strap

• Operation manual

Precision Thickness Measurement – Straight Out of the Box!
