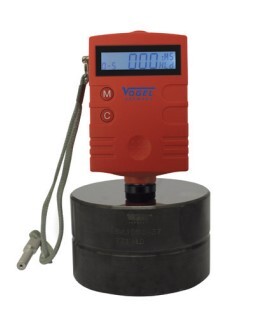

Universal Digital Rebound Hardness Tester

Universal Digital Rebound Hardness Tester (Type D Impact Device)
Portable Leeb Hardness Testing for Metals & Alloys

Key Features

✔ Leeb Principle Testing – Measures HL, HRC, HRB, HB, HV & HS scales
✔ Multi-Position Use – Tests at any angle (even upside down)
✔ Self-Calibrating – Includes certified test block for verification
✔ 99-Data Memory – Stores readings for batch analysis
✔ Rugged Polyamide Housing – Withstands shop-floor conditions

Technical Specifications

• Impact Device: Type D (integrated)

• Display: Backlit LCD (9mm digits)

• Material Compatibility:

  • Ferrous (Fe) & Non-Ferrous (NFe) metals

  • Min. Weight: 2-5kg (or 0.05-2kg with couplant)

• Surface Requirements:

  • Min. Radius: 50mm (10mm with support ring)

  • Max. Roughness: 1.6µm (Ra)

• Environmental:

  • Operating Temp: -10°C to 45°C

  • Storage Temp: -20°C to 70°C

• Power: 9V battery (included)

Professional Applications

• Foundries: Cast iron/steel quality control

• Aerospace: Alloy hardness verification

• Automotive: Engine block/shaft testing

• Metalworking: Heat treatment validation

Package Includes

• Hardness tester

• Calibration test block

• Cleaning brush

• 9V battery

• Operation manual

Instant Hardness Readings – Anytime, Anywhere
